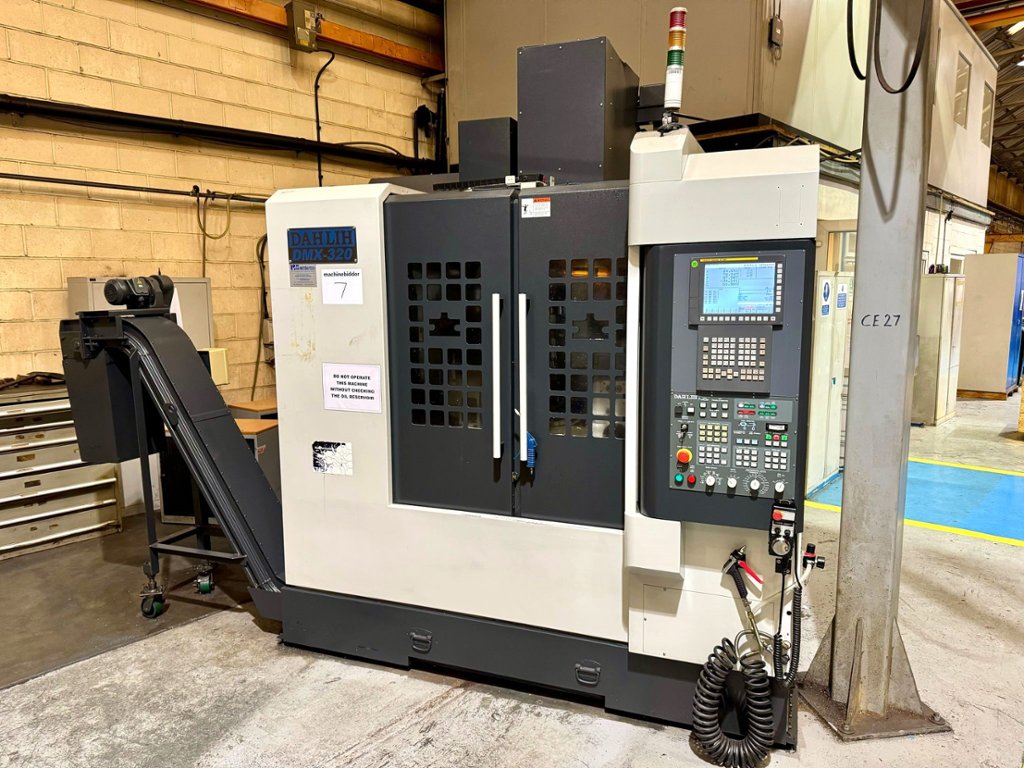

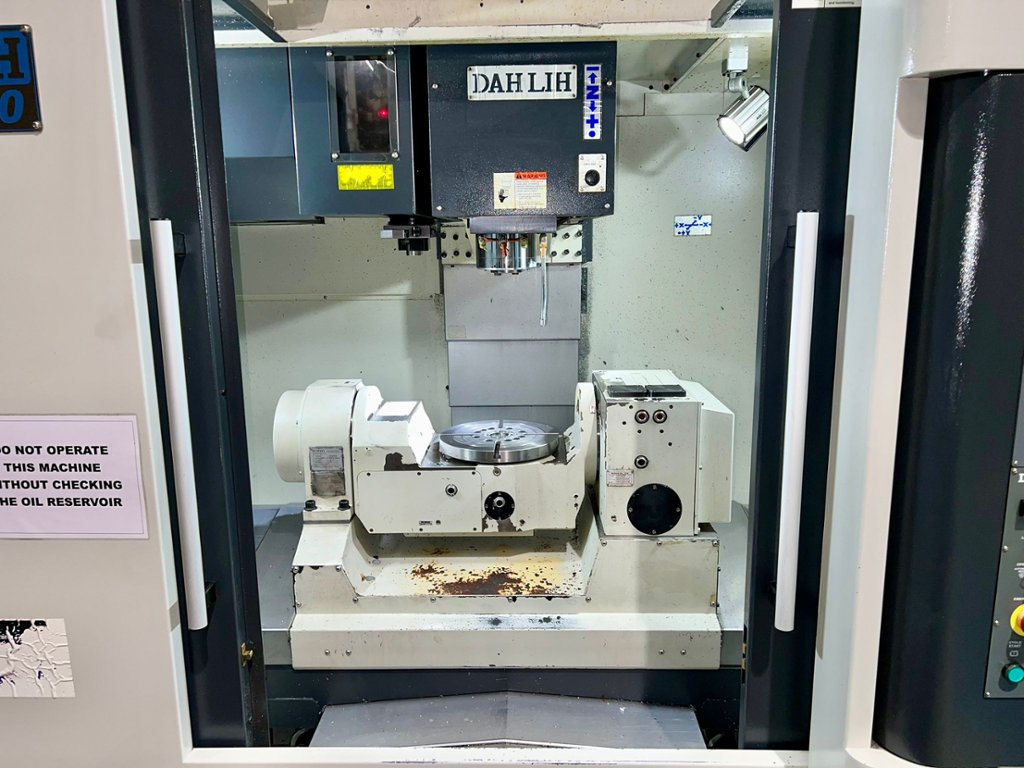

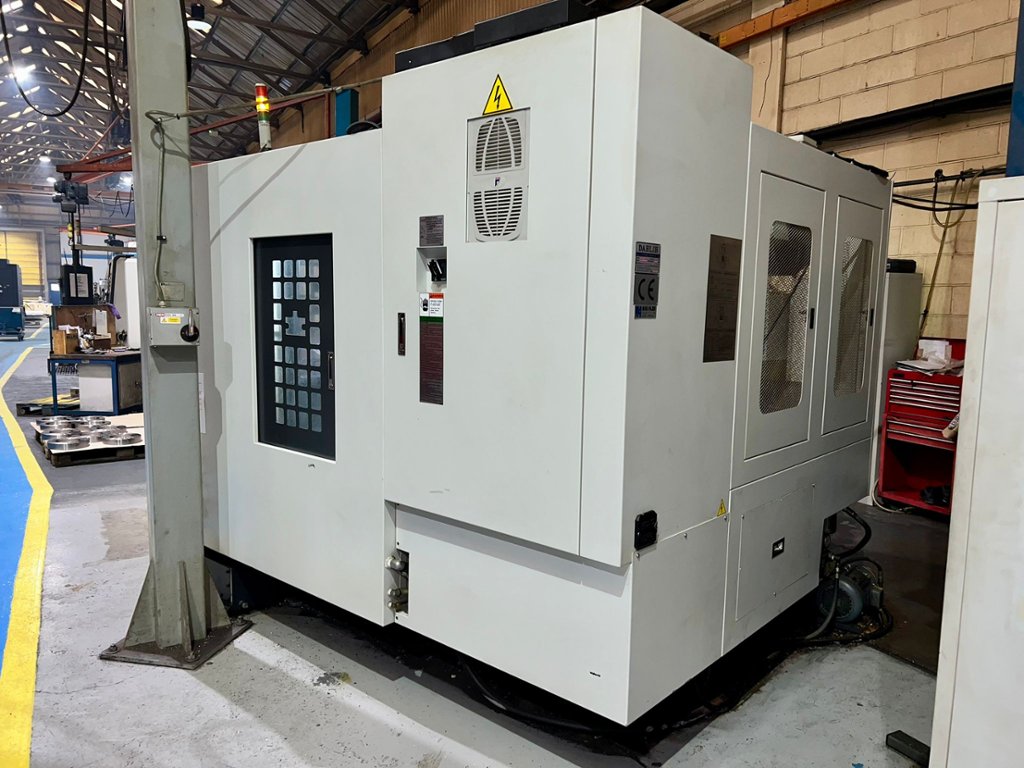

Lot 7: DAHLIH DMX320 5 Axis Vertical Machining Centre with Fanuc Series 0i-MF Control (2018)

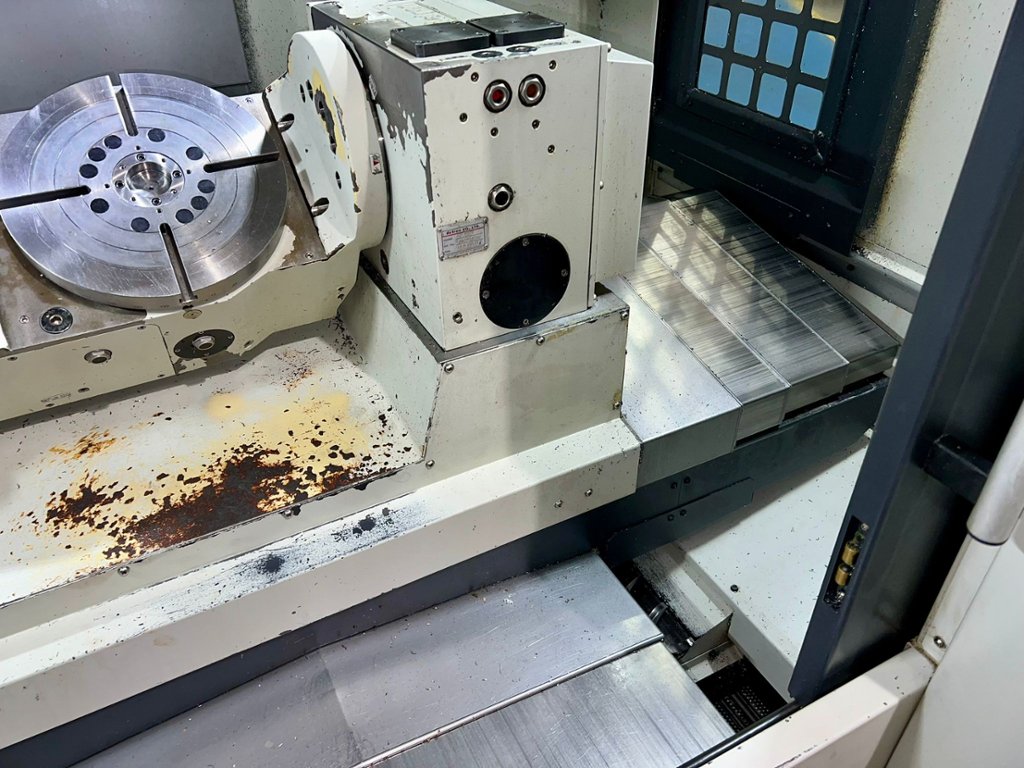

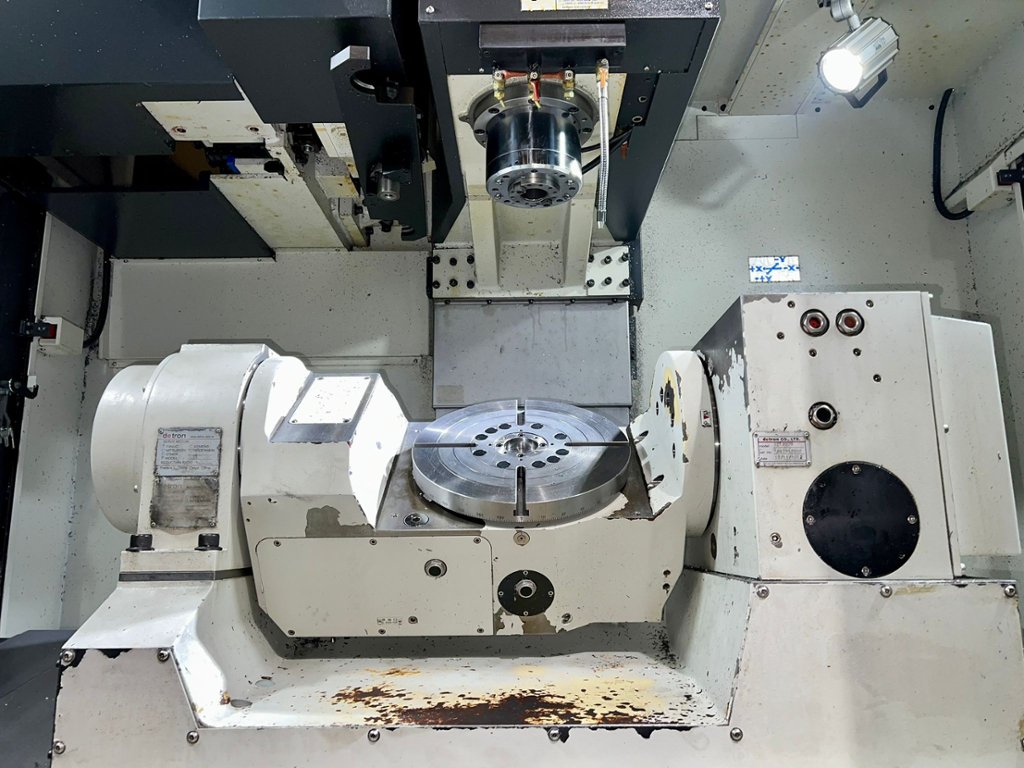

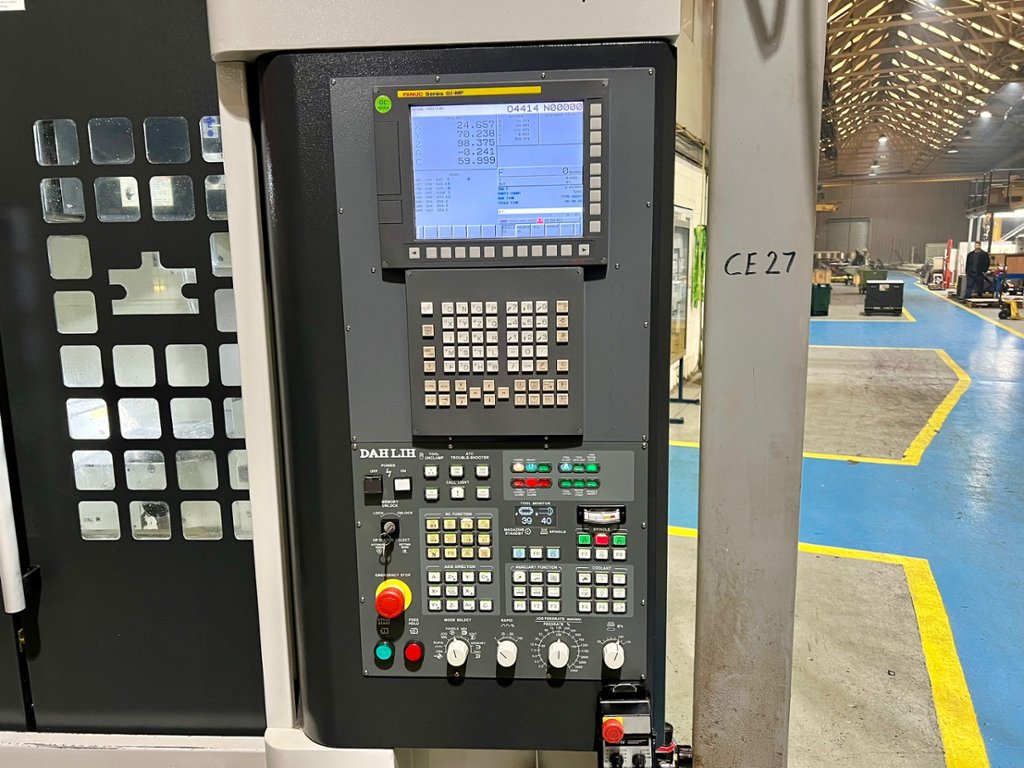

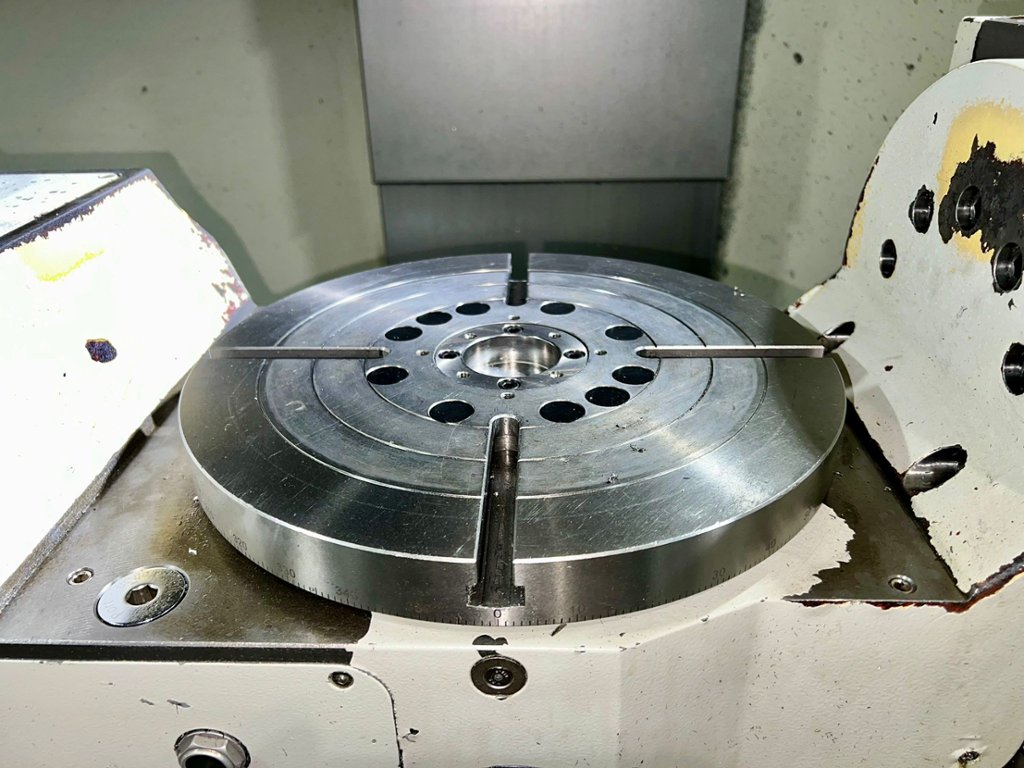

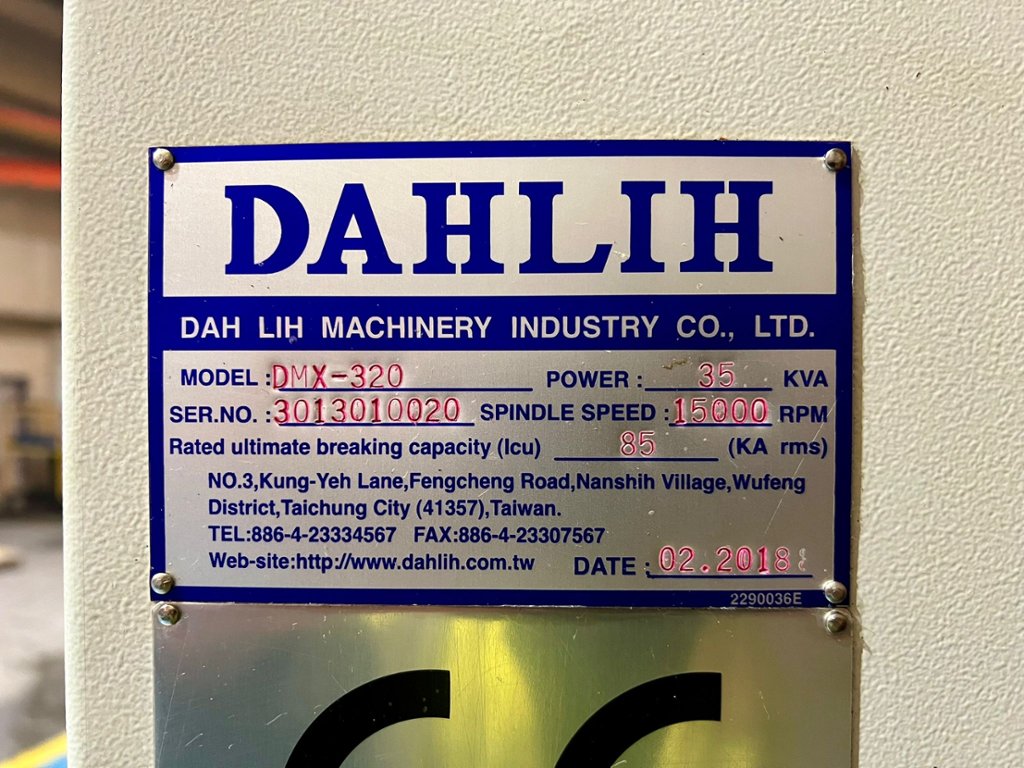

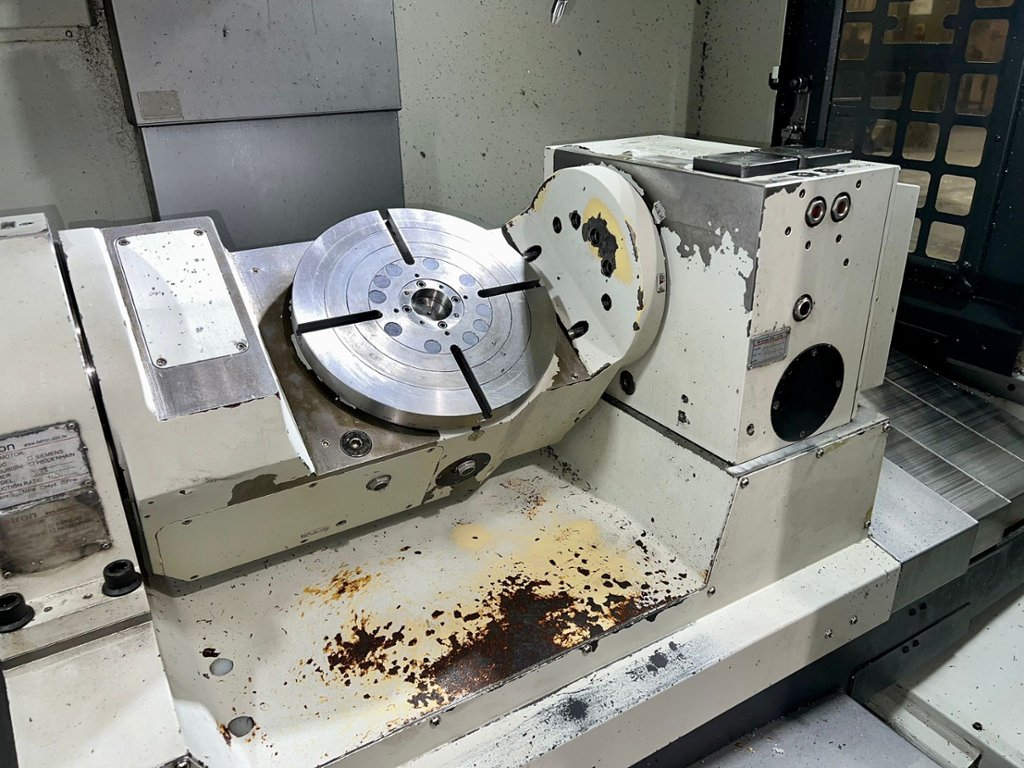

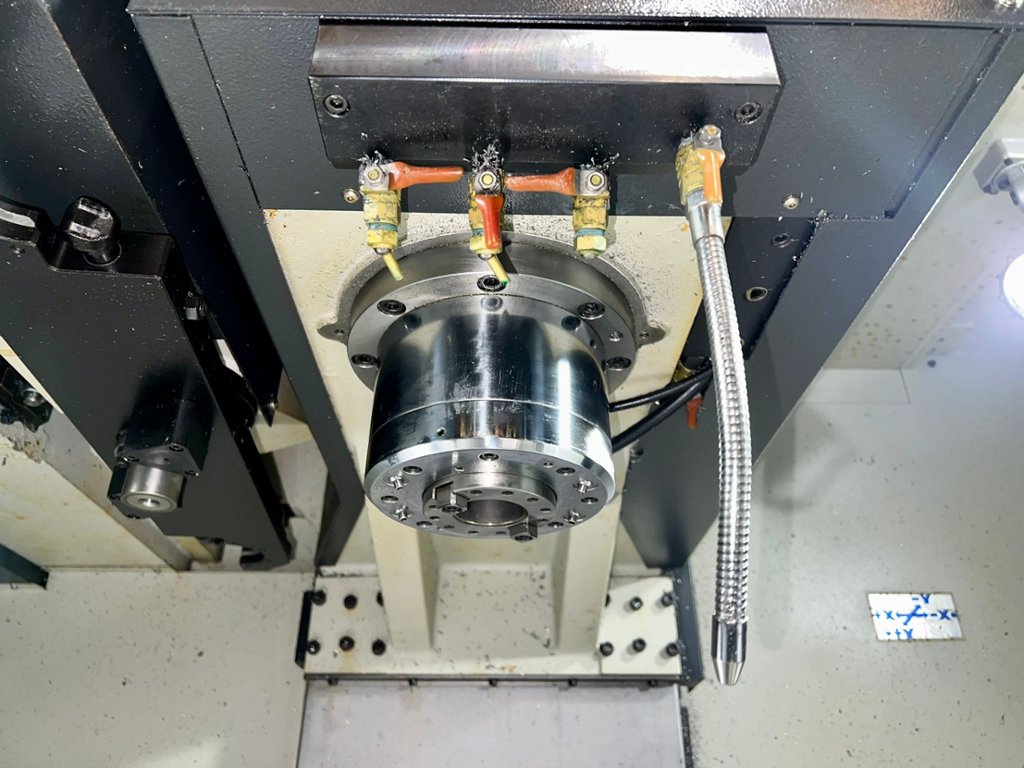

Table Size 320mm dia. T-Slots (Size x Number) 12H7 x 4. Maximum workpiece size 320mm dia. x 280mm. Torque 25kg/m. Max. Workpiece Weight 150kg. Rotation of Table (B) 360 ° x 16 rpm. . Tilting (A) +30° - -120°. X/Y/Z travels 600mm / 550mm / 500mm. Min/Max Table Top Surface to Spindle Nose 50 /550mm. Rapids X/Y/Z 40/40/30m/min. X/Y/Z Feed rates 18m/min/m. Spindle motor (30min/cont rating) 7.7/5.5kW. 24 ATC. Maximum spindle speed 10,000 rpm. Spindle taper BT40. Power requirement 36 kVA. Approximate machine size 2850mm x 2800mm x 2948mm high. Approximate weight 7000 kg. Fanuc Series 0i-MF Control. Machine Serial No. Year 2018.

OFFERS WILL BE CONSIDERED BY EMAIL IF RECEIVED WITHIN 48 HOURS PRIOR TO THE AUCTION CLOSING
