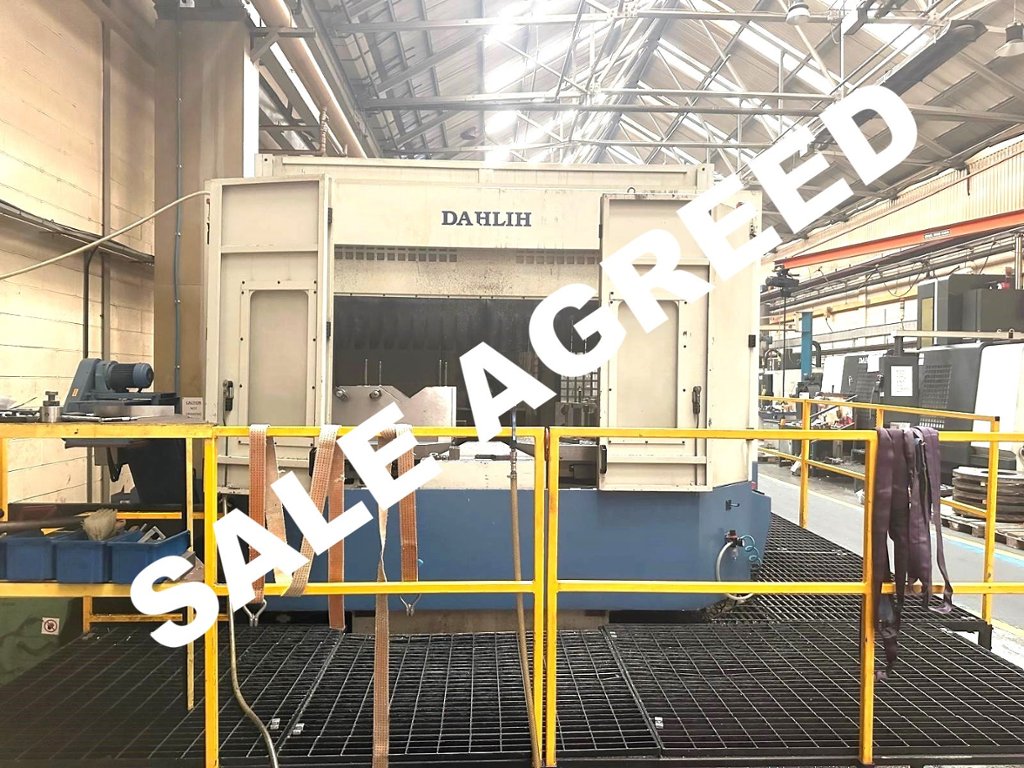

Lot 15: DAHLIH MCH800 Twin Pallet Horizontal Machining Centre with Fanuc Series 0i-MD (2012) - PHASE 2
Description
PHASE 2 – PRIVATE TREATY SALE – PLEASE NOTE THIS ITEM CAN BE PURCHASED IMMEDIATELY BUT WILL NOT BE RELEASED UNTIL ONGOING CONTRACTS HAVE BEEN COMPLETED IN FEBRUARY 2025
Pallet dimensions 800mm x 800mm. Rotation of pallet(s) 360° x 1°. X/Y/Z travels 1350mm/1000mm/1000mm. Min/Max distance spindle to table centre 300/1300mm. Min/Max distance between spindle centre to table surface 50/1050mm. Cutting feeds 5000mm/min. Rapids 10m/min. Spindle nose BT50. Spindle speeds (low/high gearbox) 4500 rpm. Max. tool dia. x length 110mm/500mm. Maximum tool weight 20 kg. 60 ATC. Spindle motor (cont rating) 15 kW.Spindle motor (30 min rating) 18.5 kW.X/Y/Z motor power 4.2/4.2/4.2 kW.Approximate machine size 4410mm x 6495mm. Power requirement 45 kVA. Approximate weight 24000 kg. Fanuc Series 0i-MD Control. Machine Serial No. 3003030185. Year 2012.
More photos posted soon
Other information
Please refer to the terms & conditions if you wish to negotiate on this item.
