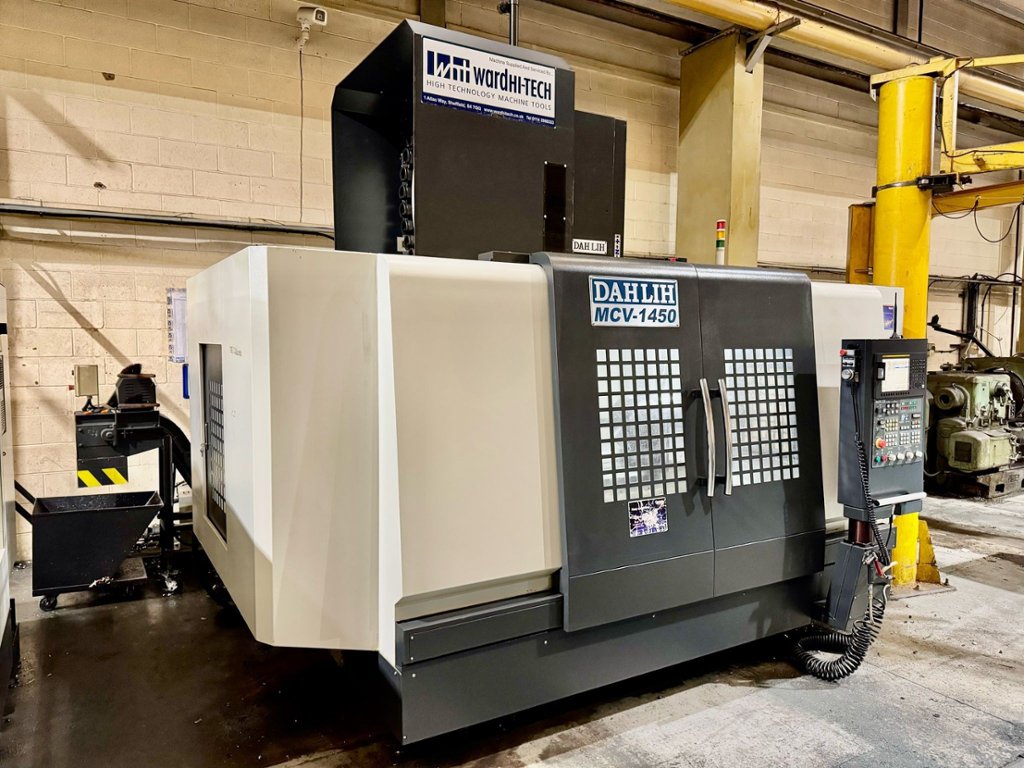

Lot 17: DAHLIH MCV1450 Vertical Machining Centre with Fanuc Series 0i-MF Control (2019) - PHASE 2
Description
PHASE 2 – PRIVATE TREATY SALE – PLEASE NOTE THIS ITEM CAN BE PURCHASED IMMEDIATELY BUT WILL NOT BE RELEASED UNTIL ONGOING CONTRACTS HAVE BEEN COMPLETED IN FEBRUARY 2025
Table size 1600mm x 800mm. T slots no. & size 22 x 5mm. Table load 2000kg. X/Y/Z travels 1450/750mm/750mm. Min/Max distance table to spindle 200/950mm. Distance between spindle centre and column surface 850mm. Rapids X/Y/Z 20/20/12m/min. Spindle nose BT50. Maximum spindle speed 6000 rpm (low/high gearbox). 32 ATC. Spindle motor (cont) 11 kW. Spindle motor (rated output 30min) 15 kW. X/Y/Z motor power 4/7/4.2 kW. Approximate machine size 5330mm x 4150mm. Approximate weight 14500 kg.Fanuc Series 0i-MF Control. Machine Serial No. 3001070547. Year 2019.
More photos posted soon
Other information
Please refer to the terms & conditions if you wish to negotiate on this item.
