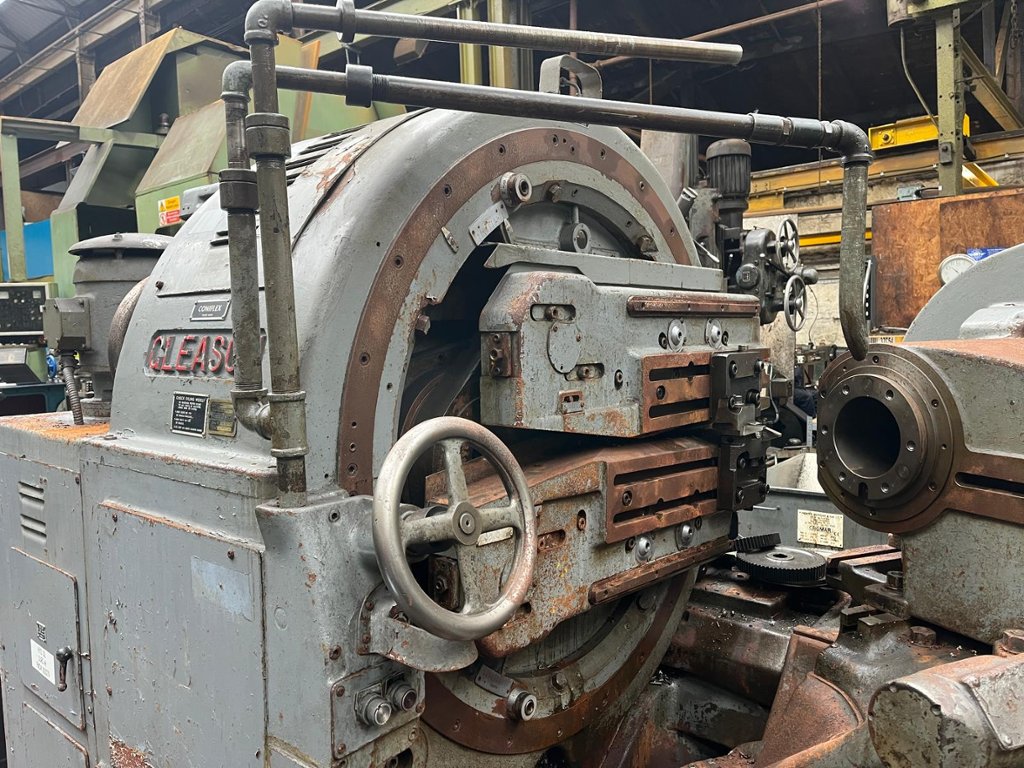

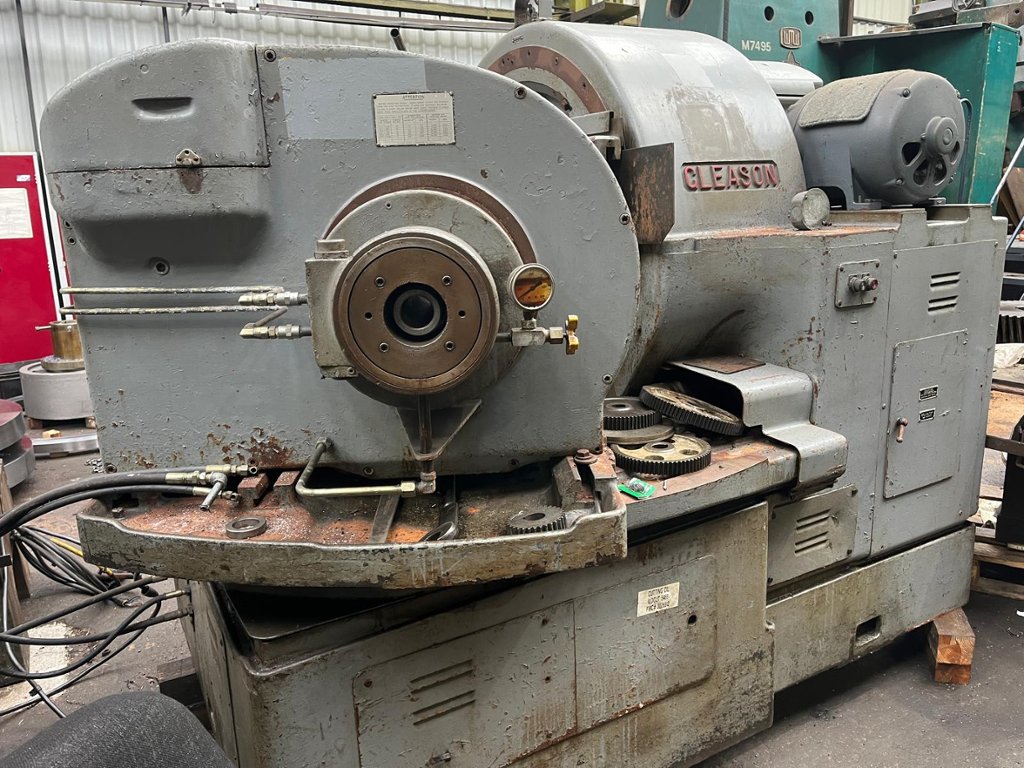

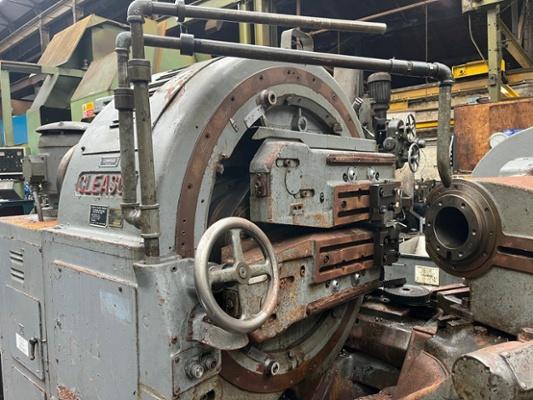

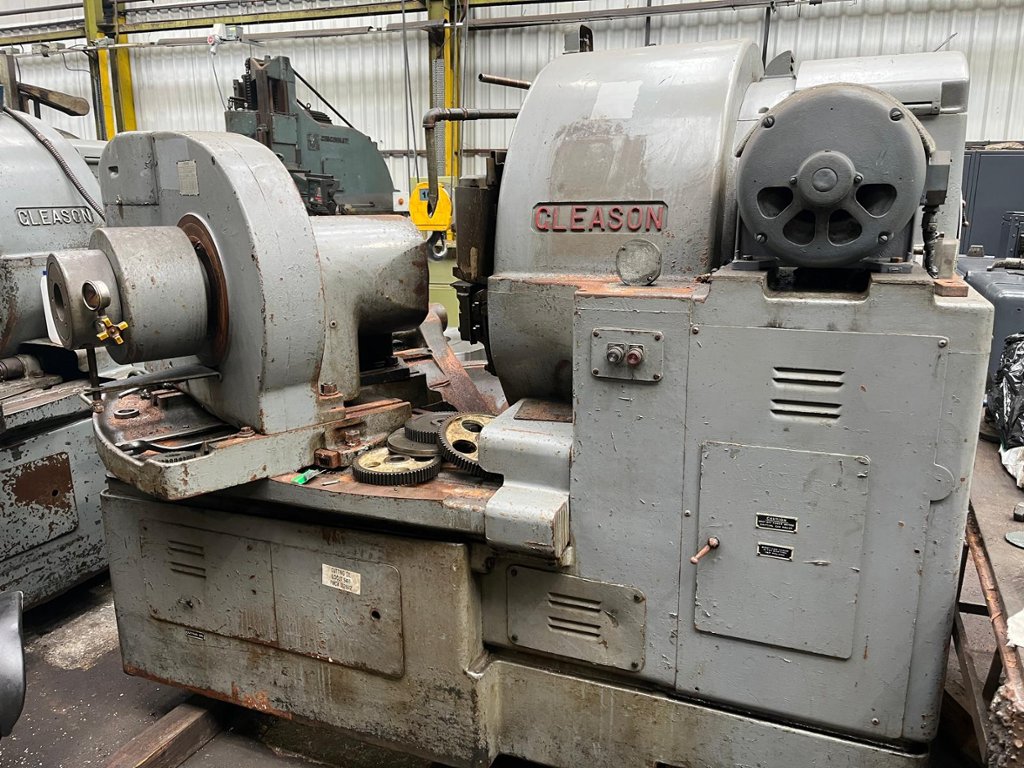

Description
Longest Cone Distance (1-3/4" Stroke): 18". Shortest Cone
Distance 0. Maximum Pitch Angle (Shafts @ 90 Degrees) 84 Deg. 18'.
Minimum Pitch Angle 5 Deg. 42'. Extreme Ratio 10 - 1. Maximum Pitch
Diameter
10-1 Ratio 35-1/2". 2-1 Ratio 31-3/4". 1-1 Ratio 25". Maximum
Pitch (Gleason System) 1-1/2 DP. Maximum Face Length 6". Stroke
Length 1-1/4"-8". Minimum Number of Teeth In Miter 13 Work Spindle
Diameter Of Taper Hole At Large End 6". Taper Per Foot 3/4".
Depth Of Taper 6". Diameter Of Hole 18" Deep From Spindle Face
5.5/8". Diameter Of Hole Through Spindle 5". Diameter Of Spindle
Nose 9.1/4"
Spindle Nose To Centerline of Machine 5"-26". Speeds and
Feeds 22 Feeds From 23 Seconds To 10 Minutes 45 Seconds. 13 Speeds
From 22 Strokes Per Minute To 170 Strokes Per Minute. Floor Space:

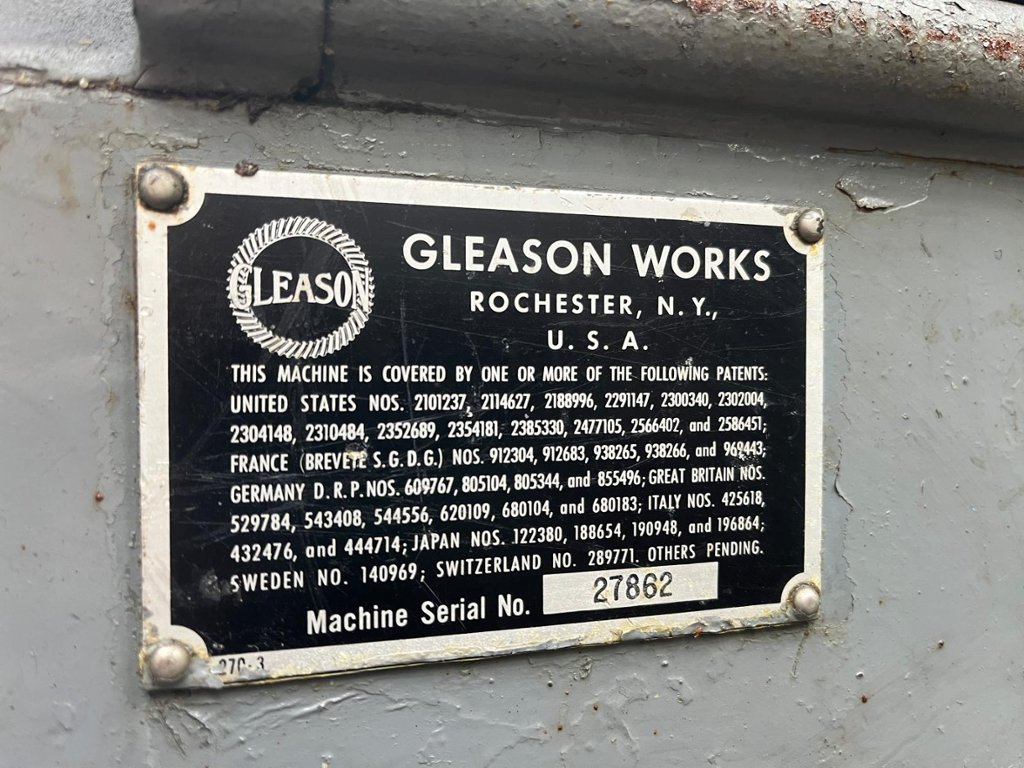

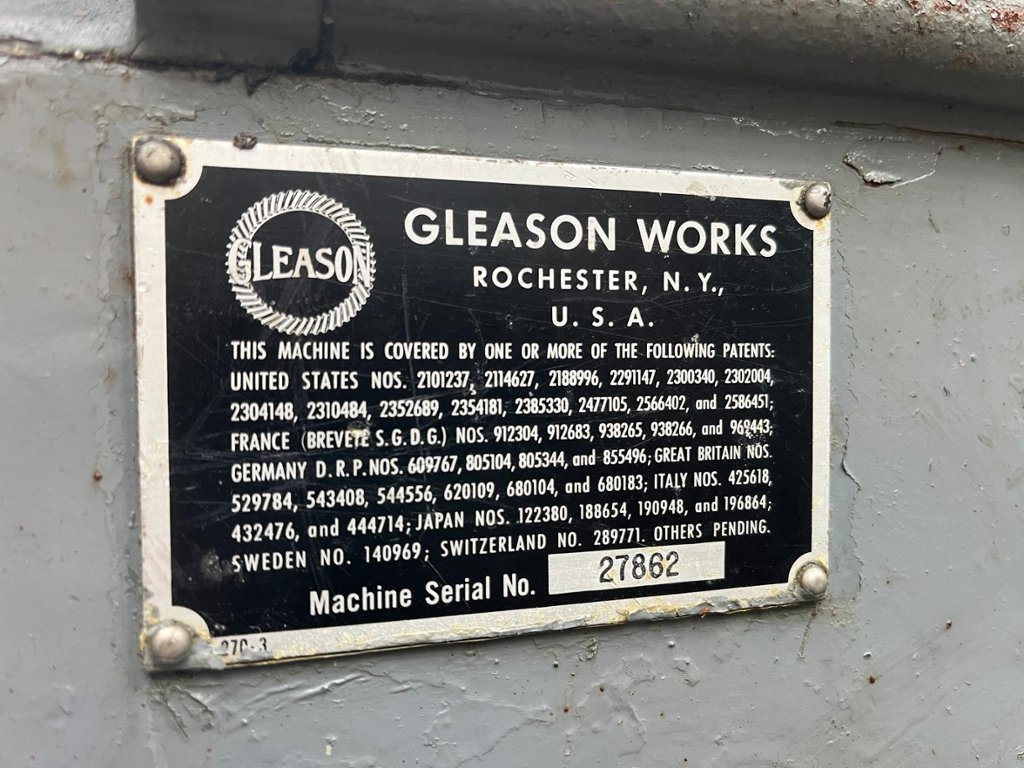

105'' x 74". Approximate weight x 11 Tons. Serial No. 27862
