CNC Lathe

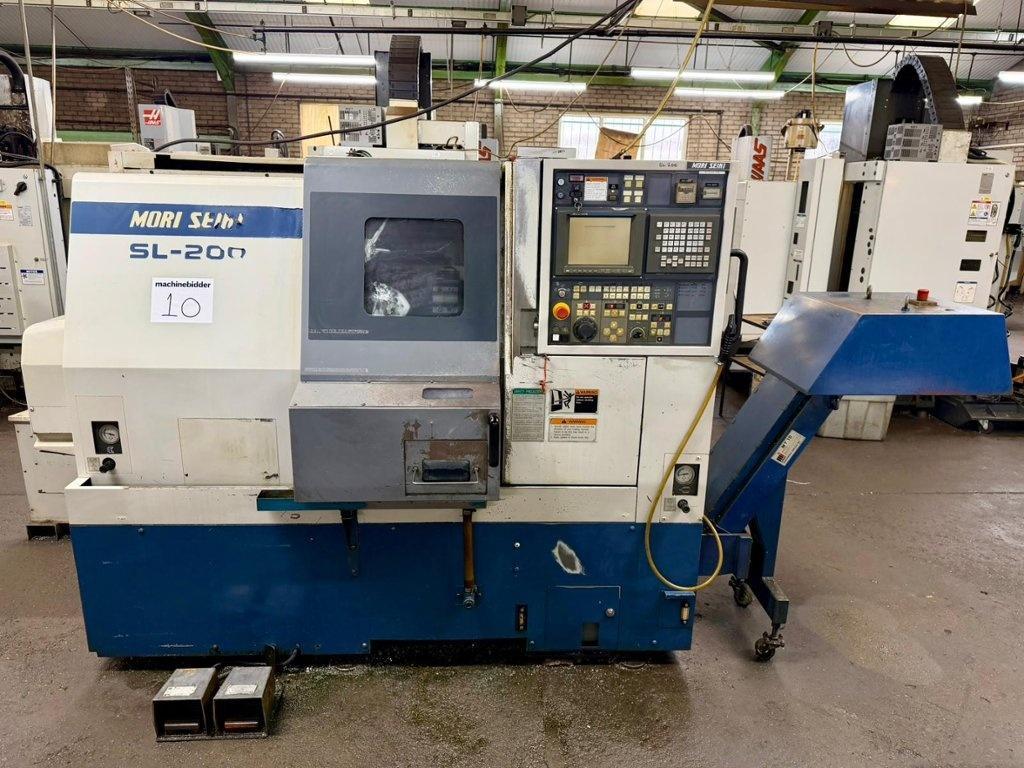

Lot 10: MORI SEIKI SL-200 CNC Lathe with MSC-518 Fanuc Control. Year 1996.
210 mm dia. Jaw Power Chuck. 12 Station Turret. Spindle Speeds up to 4000rpm. Tailstock. Max. Turning Length 460mm. Max. Turning Dia. 390mm. Dimensions L x W x H 3400mm x 1700mm x 1850mm. Approximate Weight 4200kg. Serial No: 110

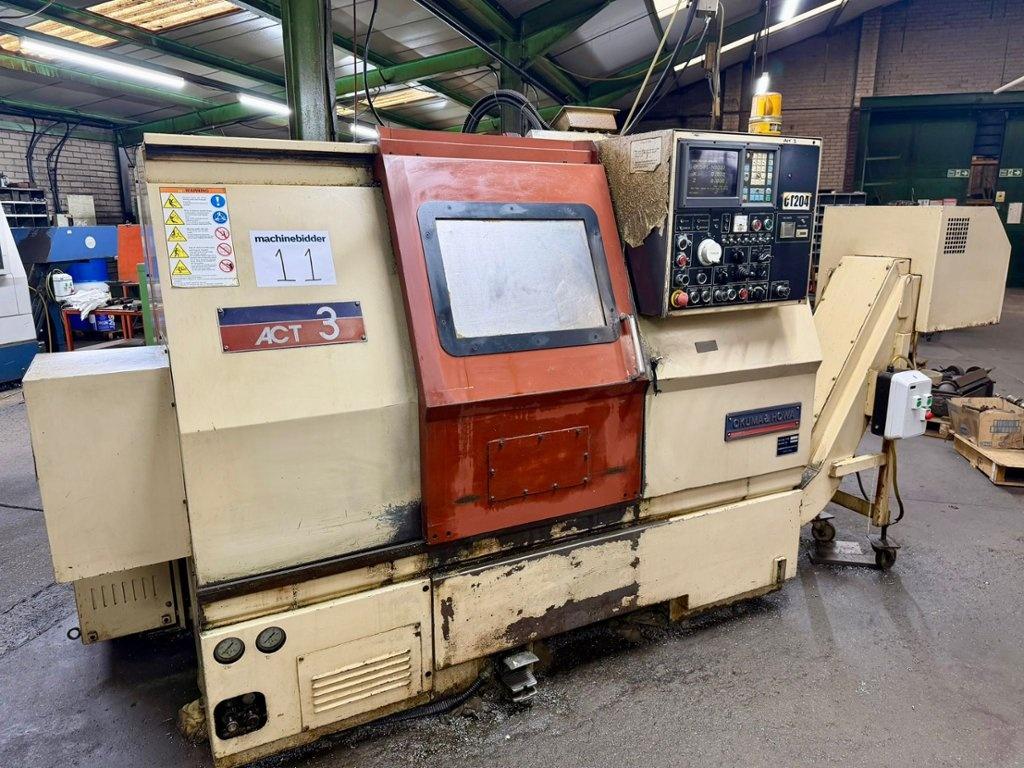

Lot 11: OKUMA & HOWA ACT 3 CNC Lathe with Fanuc Control
250mm dia. 3 Jaw Power Chuck. Tailstock. 12 Station Turret. Spindle Speeds up to 4000rpm. Max. turning length 580mm. Max. turning dia. 210mm. Machine Dimensions L x W x H 3300mm x 1500mm x 1900mm. Approximate weight 3750kg. Serial No: 09389

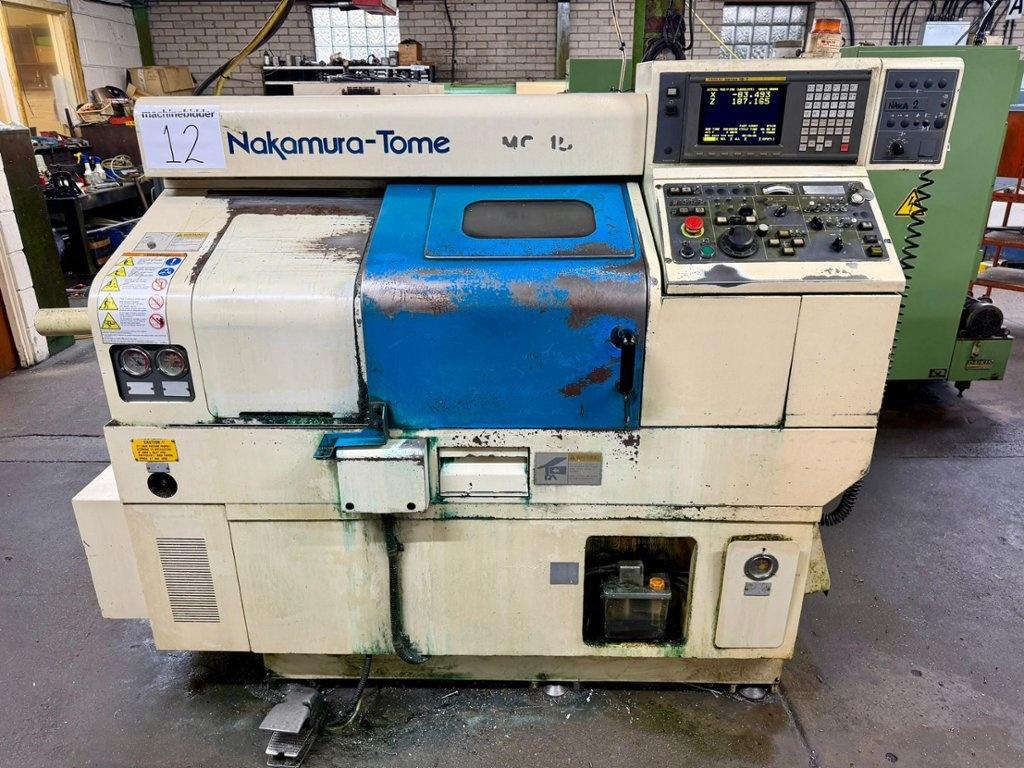

Lot 12: NAKAMURA TOME TMC-15 CNC Lathe with Fanuc Series 18-T Control
170mm dia. 3 Jaw Power Chuck. Tailstock. 8 Station Turret. Max turning length 249mm. Max turning dia 180mm . Spindle speeds up to 4500rpm. Machine dimensions L x W x H 2100mm x 1250mm x 1700mm. Approximate weight 2300kg. Serial No: R12709

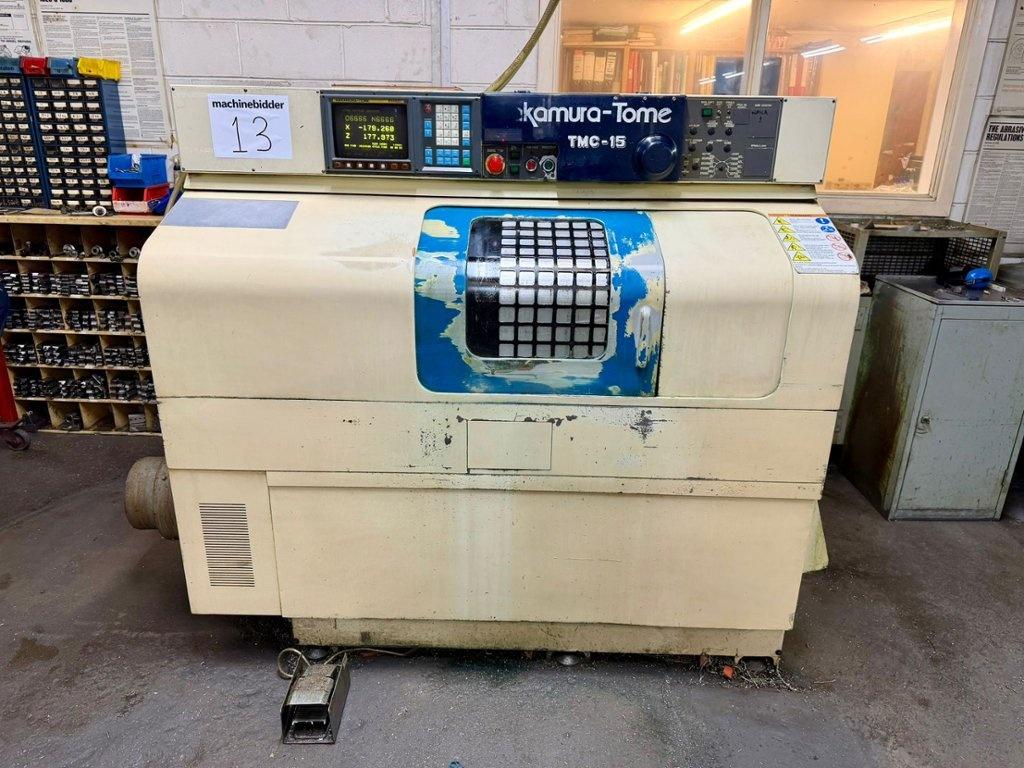

Lot 13: NAKAMURA TOME TMC-15 CNC Lathe with Fanuc Control
165mm dia. 3 Jaw Power Chuck.8 Station Turret. Max turning length 249mm. Max turning dia 180mm . Spindle speeds up to 4500rpm. Machine dimensions L x W x H 2100mm x 1250mm x 1700mm. Approximate weight 2300kg. Serial No: 09604

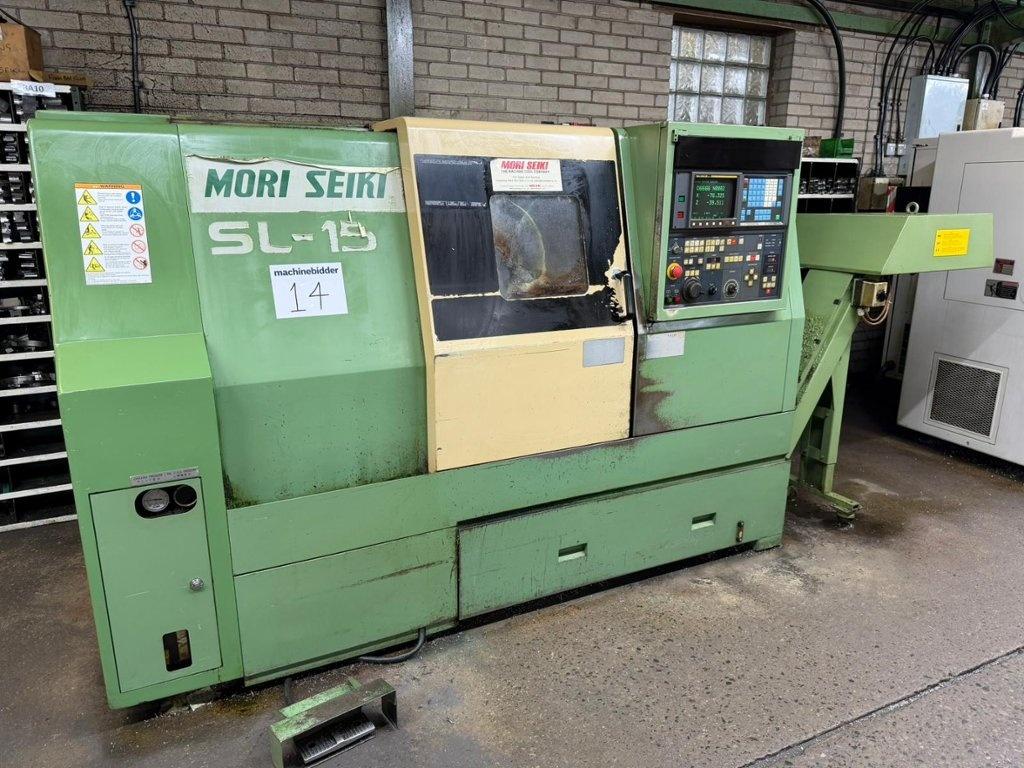

Lot 14: MORI SEIKI SL-15 CNC Lathe with Fanuc MF-T4 Control
160 mm dia. 3 Jaw Power Chuck. 12 Station Turret. Spindle Speeds up to 4000rpm. Tailstock. Max. Turning Length 525mm. Max. Turning Dia. 160mm. Tailstock. Machine Dimensions L x W x H 3400mm x 1450mm x 1700mm. Approximate Weight 4000kg. Serial No: 1482

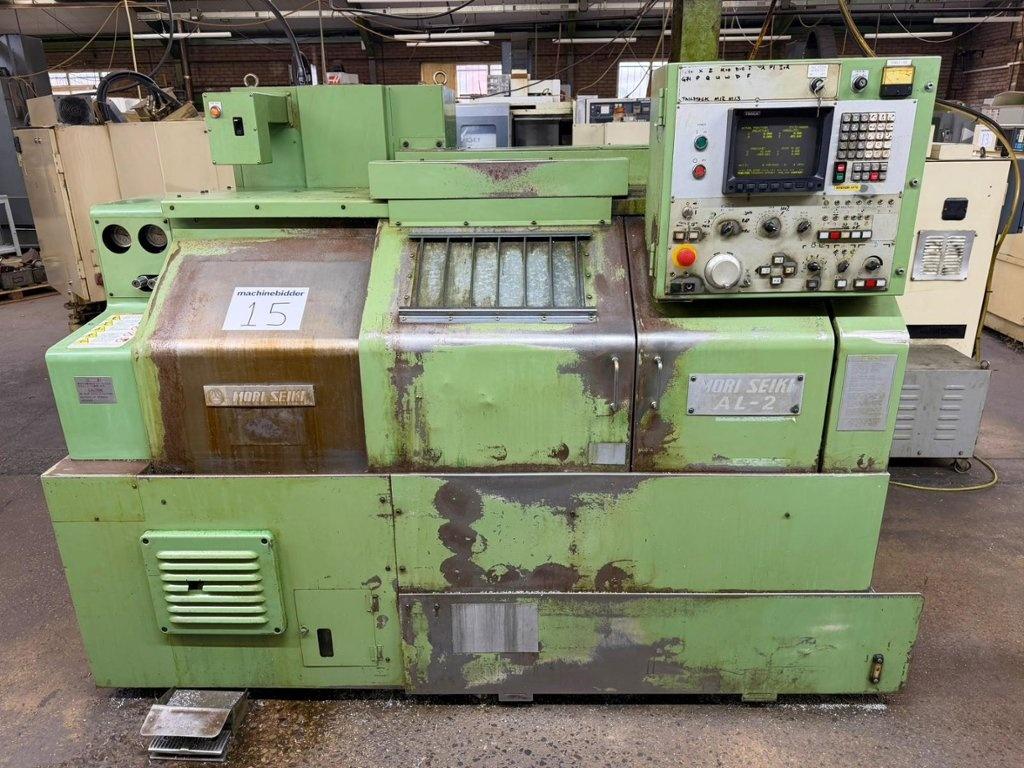

Lot 15: MORI SEIKI AL-2 CNC Lathe with Fanuc 10-TE Control
210 mm dia. 3 Jaw Power Chuck. 8 Station Turret. Tailstock. Spindle Speeds up to 4000rpm. Max. Turning Length 480mm. Max. Turning Dia. 248mm. Machine Dimensions L x W x H 2300mm x 1300mm x 1800mm. Approximate Weight 2000kg.

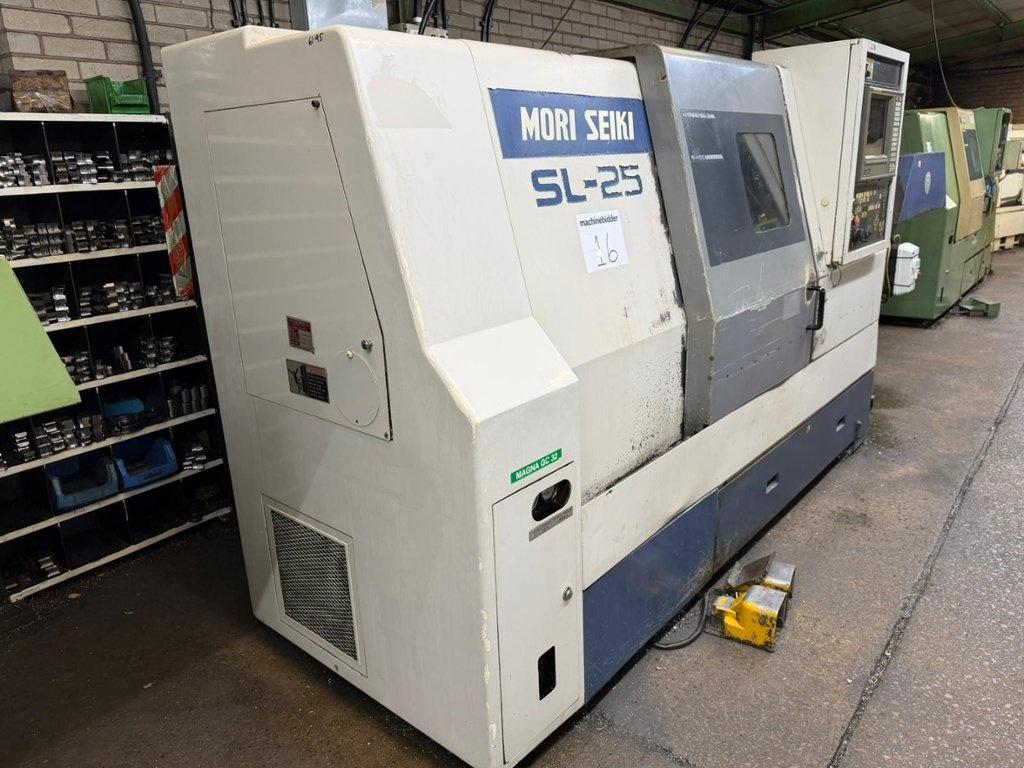

Lot 16: MORI SEIKI SL25B CNC Lathe with Moric-T6FII Fanuc Control
250 mm dia. 3 Jaw Power Chuck. 10 Station Turret. Tailstock. Spindle Speeds up to 3500rpm. Max. Turning Length 530mm. Max. Turning Dia. 260mm. Machine Dimensions L x W x H 4200mm x 1750mm x 1850mm. Approximate Weight 5000kg. Serial No: 6800

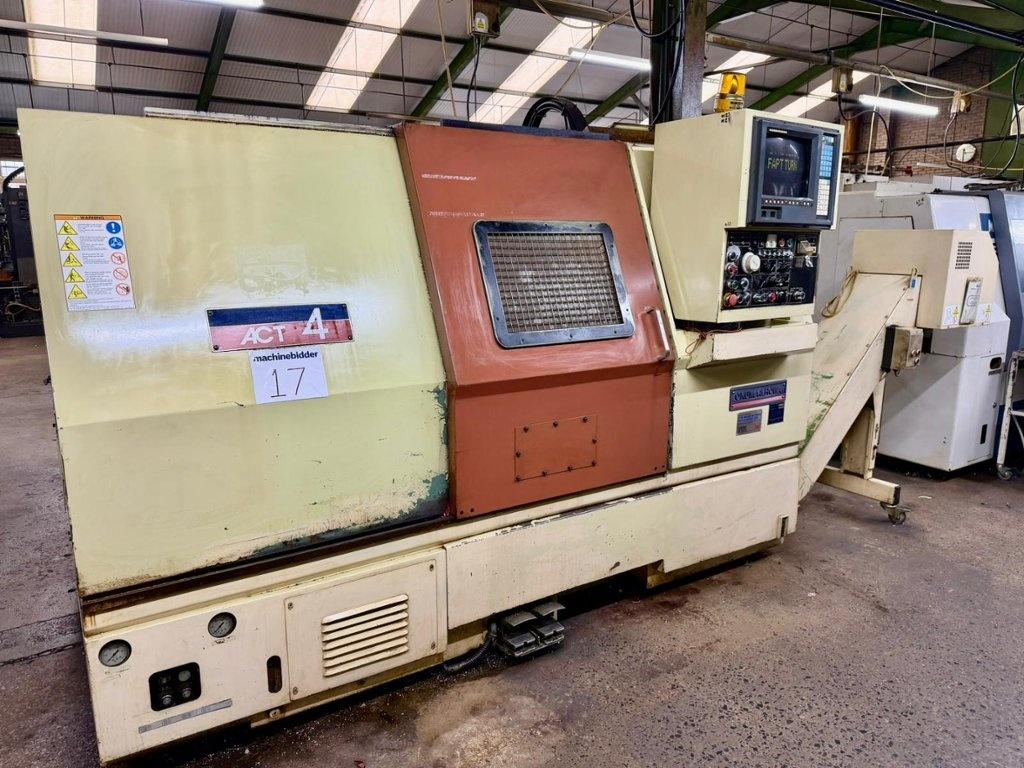

Lot 17: OKUMA & HOWA ACT 4 CNC Lathe with Fanuc Series 15-T Control
305mm dia. 3 Jaw Power Chuck. Tailstock. 12 Station Turret. Spindle Speeds up to 3500rpm. Max. turning dia. 350mm. Max. turning length 730mm. Machine Dimensions L x W x H 4200mm x 1850mm x 2150mm. Approximate weight 5000kg.

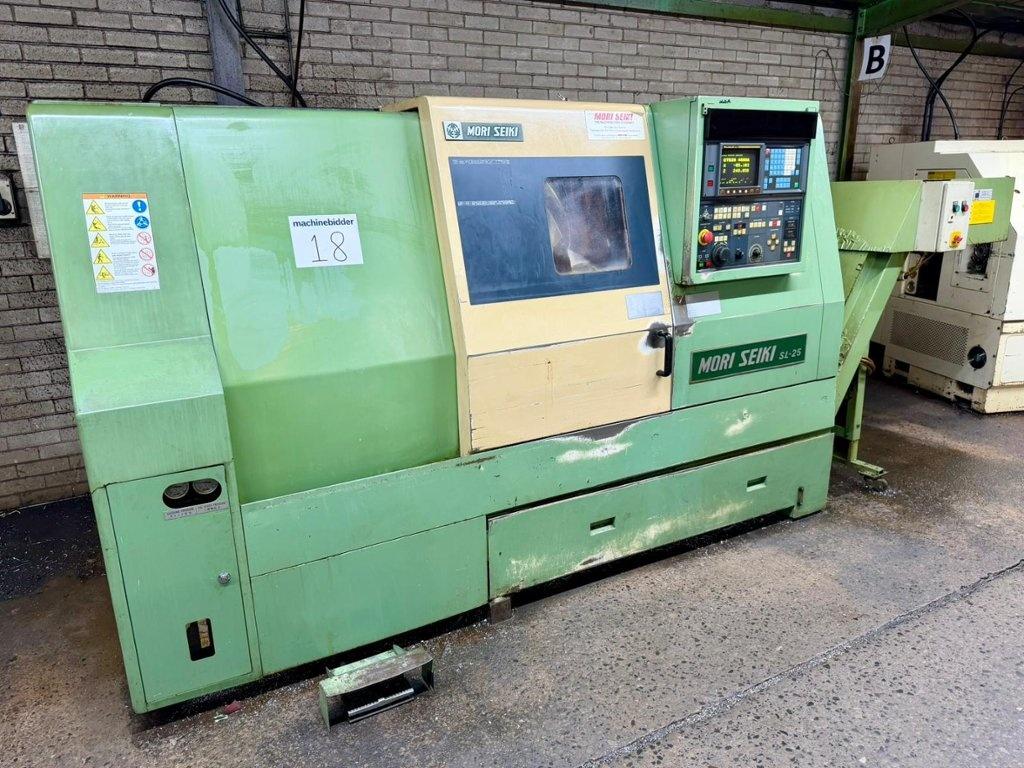

Lot 18: MORI SEIKI SL25B5 CNC Lathe with MF-T4 Fanuc Control
255mm dia. 3 Jaw Power Chuck. Tailstock. 10 Station Turret. Spindle Speeds up to 3500rpm. Max. turning dia. 260mm. Max. turning length 550mm. Machine Dimensions L x W x H 4100mm x 1700mm x 1850mm. Approximate weight 5000kg. Serial No: 4879

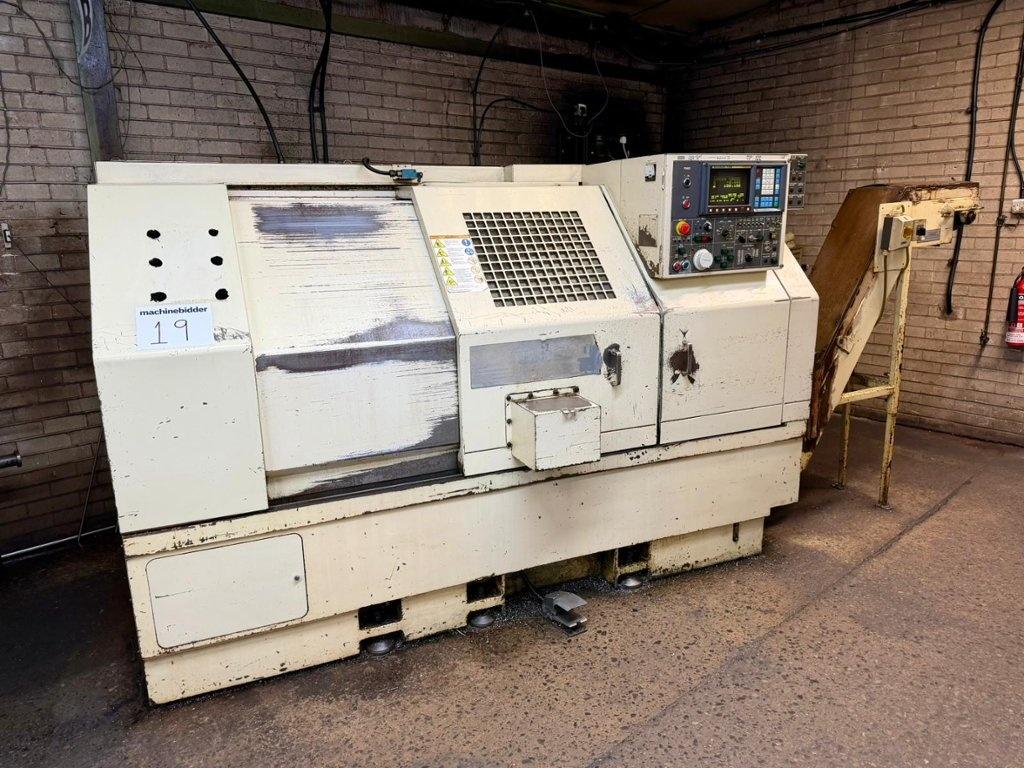

Lot 19: NAKAMURA TOME TMC-30 CNC Lathe with Fanuc Control
Collet Chuck with Collets. 10 Station Turret. Spindle Speeds up to 3500rpm. Max. turning dia. 320mm. Max. turning length 550mm. Machine Dimensions L x W x H 3750mm x 1700mm x 1800mm. Approximate weight 2500kg. Serial No: 436106. Machine has Tailstock but needs attention / repair.

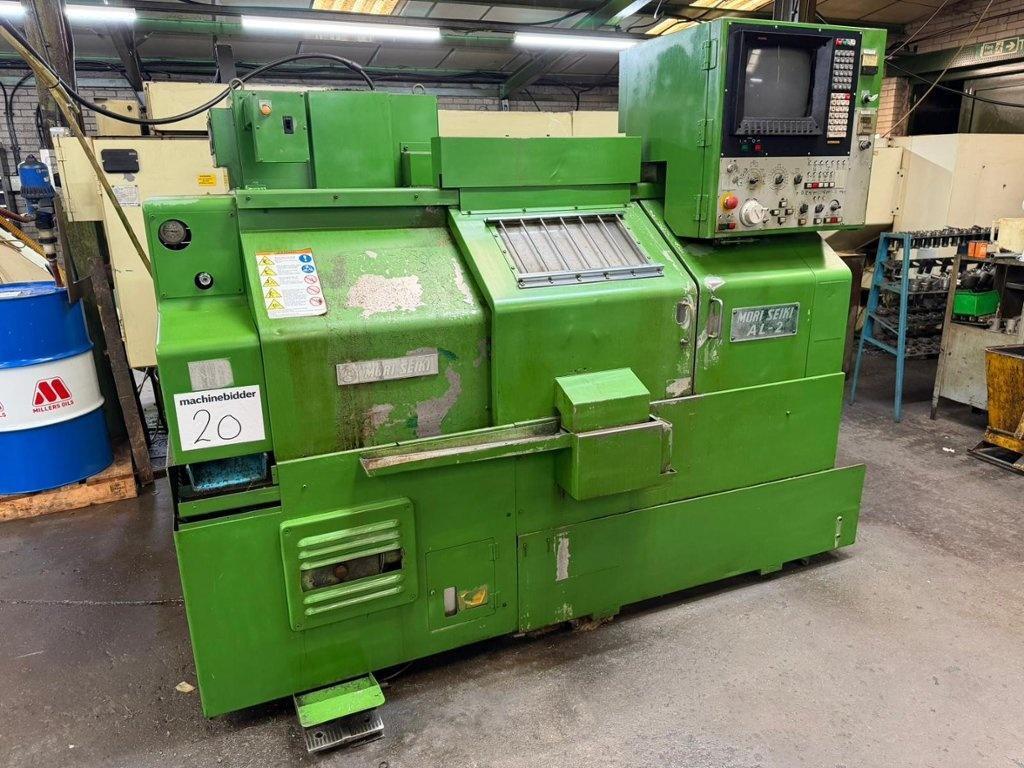

Lot 20: MORI SEIKI Al-2 CNC Lathe with Fanuc 10TE-F Control (Screen needs attention)
210 mm dia. 3 Jaw Power Chuck. 12 Station Turret. No Tailstock. Spindle Speeds up to 4000rpm. Max. Turning Length 480mm. Max. Turning Dia. 248mm. Machine Dimensions L x W x H 2300mm x 1300mm x 1800mm. Approximate Weight 2200kg. Serial No: 1030.
Closed Lots
Lot 3: XYZ 200TC CNC Lathe with Siemens 810D CNC Control. Barfeed and Swarf Conveyor
Maximum swing 420mm. Maximum turned dia. 200mm. Maximum turned length 550mm. Spindle bore 62mm. Bar capacity 52mm. Spindle speed 4800 rpm. 12 station turret (VDI). Spindle power 14.9kW. Fitted with Hydraulic 200mm dia. 3 jaw chuck. Tool Setting Arm. Swarf Conveyor. Remote Electronic Handwheel. Multifeed Barfeed. Hydraulic Tailstock. Siemens 810D CNC Control. Weight 4100kg

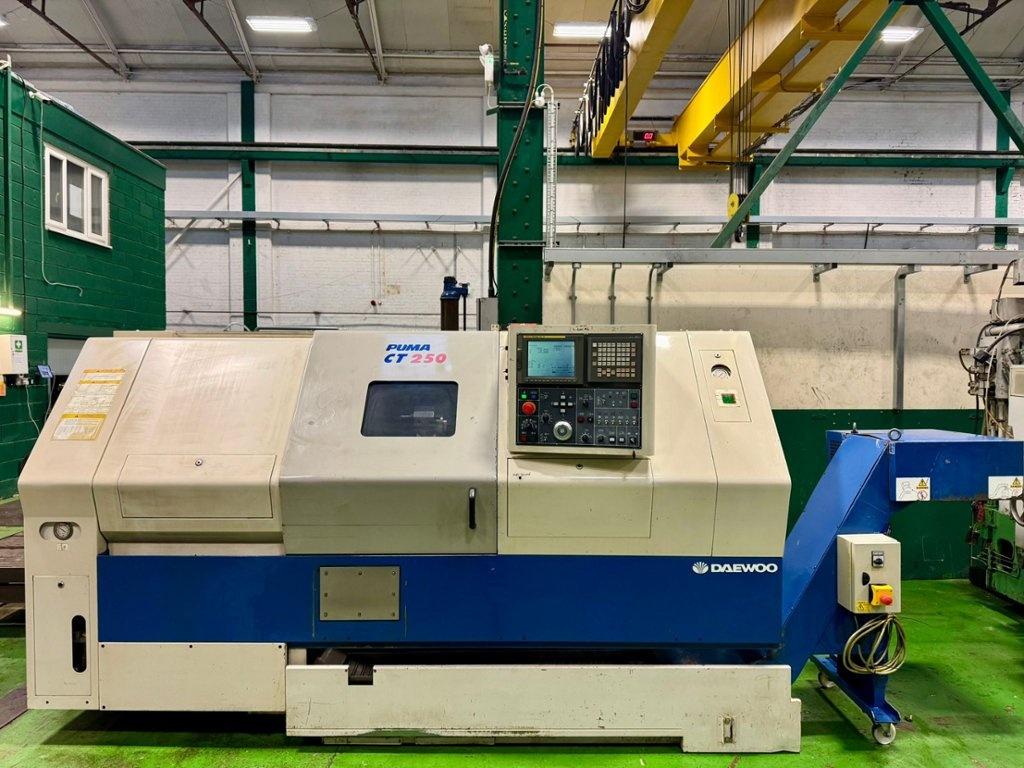

Lot 8: DAEWOO Puma CT250 CNC Lathe with Fanuc 21i-T. Swarf Conveyor. Year 2002
Swing over bed 570mm. Turning dia. 420mm. Maximum turning length 650mm. Spindle speeds 3500 rpm. Machine complete 3 jaw powered chuck. 10 station turret. Tailstock. Swarf conveyor. Swarf Bin. Toolsetter. Fanuc 21i-T Control.

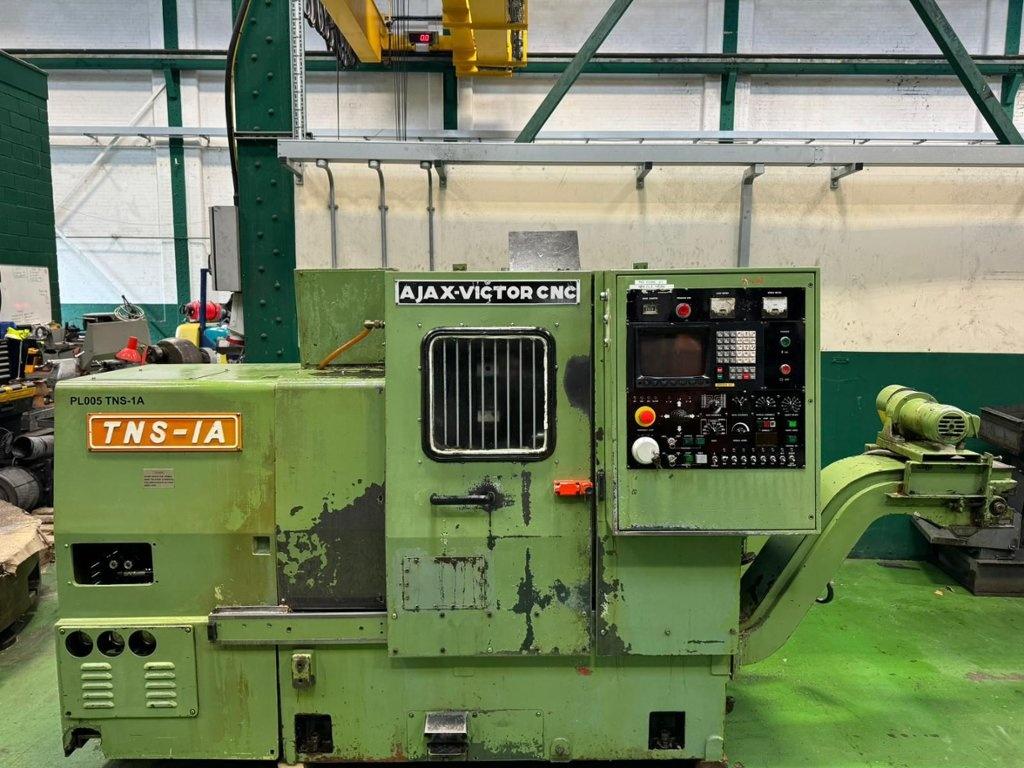

Lot 12: VICTOR TNS-1A CNC Lathe with Fanuc 10T-A Control. Year 1985
12 Tool Turret. Spindle Speeds upto 6000rpm. Machine dimensions L x W x H. 3150mm x 1450mm x 1900mm. Approx. weight 3000kgs. Serial No: NJ-0029

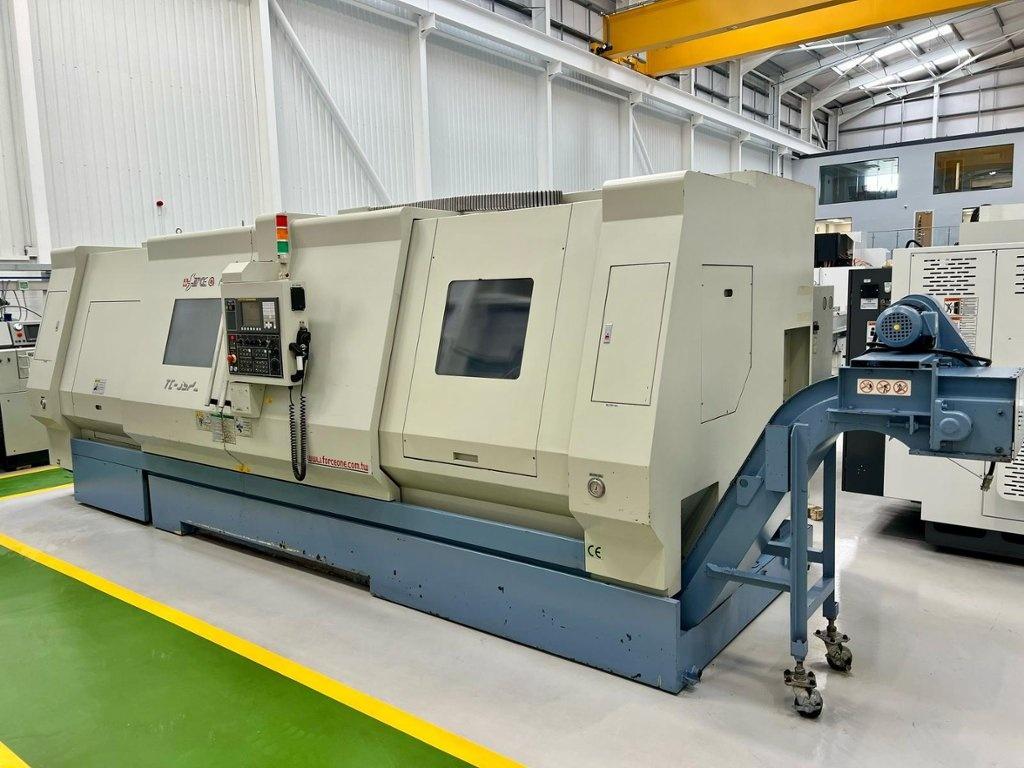

Lot 1: FORCE ONE TC-3523 x 2300mm CNC Slant Bed Lathe with Fanuc Series 0i-TD Control. Year 2012
Swing over bed 660mm. Swing over cross slide 480mm. Maximum turning dia. 500mm. Maximum turning length 2315m. X/Z travel 250 +25mm/2250mm. Rapids X/Z 12/15m/min. Feed rates X/Z 0.001mm/500mm/min. Spindle nose A2-11. Spindle speeds (Geared) Low to 625 rpm (High) to 2500 rpm. Spindle Motor Power (continuous) 22kW. Spindle Motor Power (30 minutes) 26kW. Bar capacity 116mm. Fitted with 385mm dia. 3 jaw chuck. 12 station turret. 2 x Fixed steadies 210mm dia & 410mm dia. capacity. Tailstock dia/stroke 110mm/100mm. Tailstock Taper No.5MT. Turret tooling. Oil Cooler. Transformer. Swarf Conveyor. Fanuc Series 0i-TD Control. Machine Manuals. Machine dimensions L x W x H 5924mm (6824mm with swarf conveyor) x 2130mm x 2235mm high. Approximate weight 13,700 kg.
Lot 2: HARDINGE GS200/66 CNC Lathe with Siemens Sinumerik 810D Control. Year 2007
Maximum machining dia. 284mm. Maximum swing over slideway covers 457mm. Travel X/Z 153mm/406mm. Rapids X/Z 30m/min. Spindle speeds 5000rpm. 12 station turret. Tailstock taper 4MT. Coolant capacity 125 litre. Machine complete with 3 jaw powered chuck. Collet Chuck. Assortment of Collets. Toolholders. Siemens Sinumerik 810D Control.Machine dimensions L x W x H 1998mm x 1650mm x 1881mm. Approximate weight 4950 kg

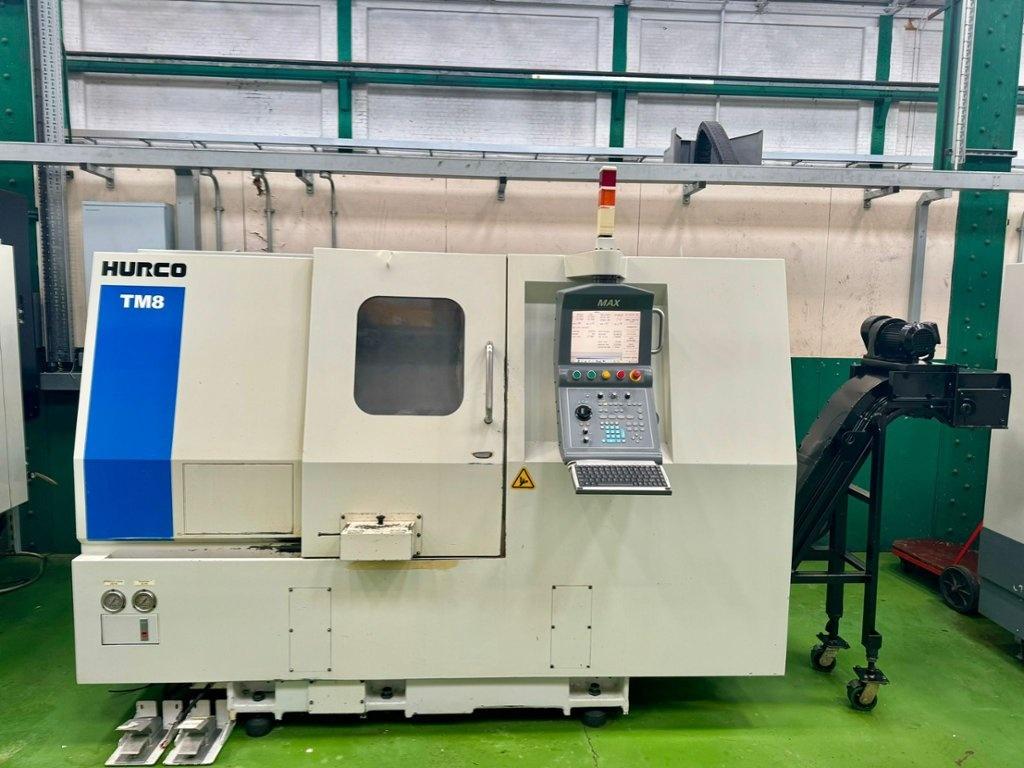

Lot 11: HURCO TM8 CNC Lathe with WinMax Control. Year 2005
Maximum swing 525mm dia. Maximum Cutting Diameter 356mm. Maximum Cutting Length 483mm.Bar capacity 51mm.10 station turret. Spindle speed 4,800 rpm. Spindle nose A2-6. Spindle power 16 kW. X travel 203mm. Z travel 508mm. Tailstock. Toolsetter. Swarf conveyor. Parts catcher. Rigid tapping. 3D Graphics. Machine complete with 3 jaw 200mm dia. powered chuck. Turret tooling. Bar puller. Coolant. Machine dimensions L x W x H. 2950mm x 2300mm x 2032mm. Approx weight 3700kgs.

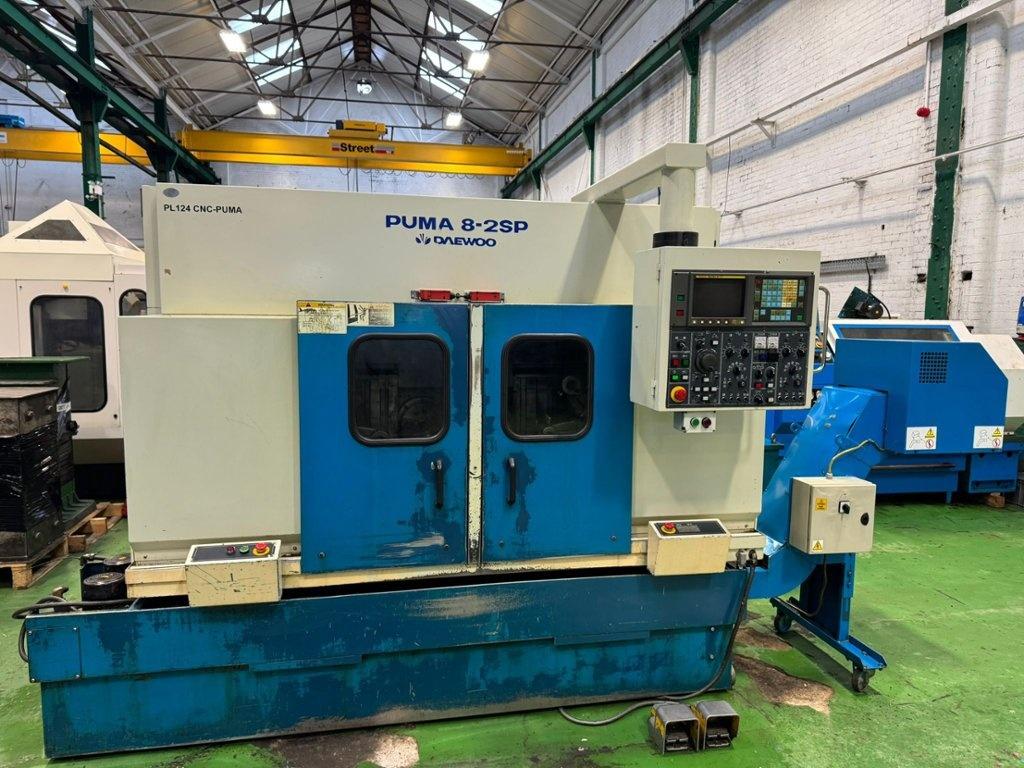

Lot 9: DAEWOO Puma 8-2SP Twin Spindle / Twin Turret CNC Lathe with Fanuc Series 0-TT Control. Year 1996
2 x 205mm dia Chucks. 8 Tool Turrets. Spindle Speeds 3500rpm. Max. Turning Dia. 300mm. Max. Turning Length 200mm. Serial No: 2SP80170. Machine Dimensions L x W x H 4000mm x 3000mm x 2200mm. Approx Weight. 6500kgs.
